Multimodal-RAG-Pipeline

The Anonymized Agentic Multimodal Retrieval-Augmented Generation (RAG) Pipeline for large-scale internal document processing features an AI-powered chatbot based on GPT-5, designed to assist with any type of documentation. It offers quick and accurate responses to queries related to the documentation provided.

Abstract

Towards to end of the first quarter of the 21st century the Artificial Intelligence (AI) has emerged as a game changer in the business world. The demand for an intelligent enterprise documentation retrieval system that addresses the critical challenge of accessing information in large-scale software development environments is high, as such a system can significantly improve productivity by locating relevant documents, enhancing knowledge sharing, reducing the time spent searching for information, and accelerating development workflows.

The Agentic RAG pipelines model provides an approach that utilizes three microservice architectures that combine preprocessing (including anonymization, semantic vectorization, and conversational AI) to create a knowledge sharing platform. It is a cloud application that leverages Large Language Models to provide useful features. It can be integrated as a SlackBot to improve accessibility for users. It offers a continuous workflow that updates the database regularly.

A working prototype has been developed using Flask API’s and deployed to Cloud Foundry. Integrates \texttt{SpaCy}-based anonymizer for anonymized data processing, a PostgreSQL vector database for similarity search, and an Azure OpenAI-powered conversational interface with LangGraph orchestration for context-aware responses. The method’s versatility accross diverse document types, large languange models and allowing rapid database change hold early promise for robust performance for future applications.

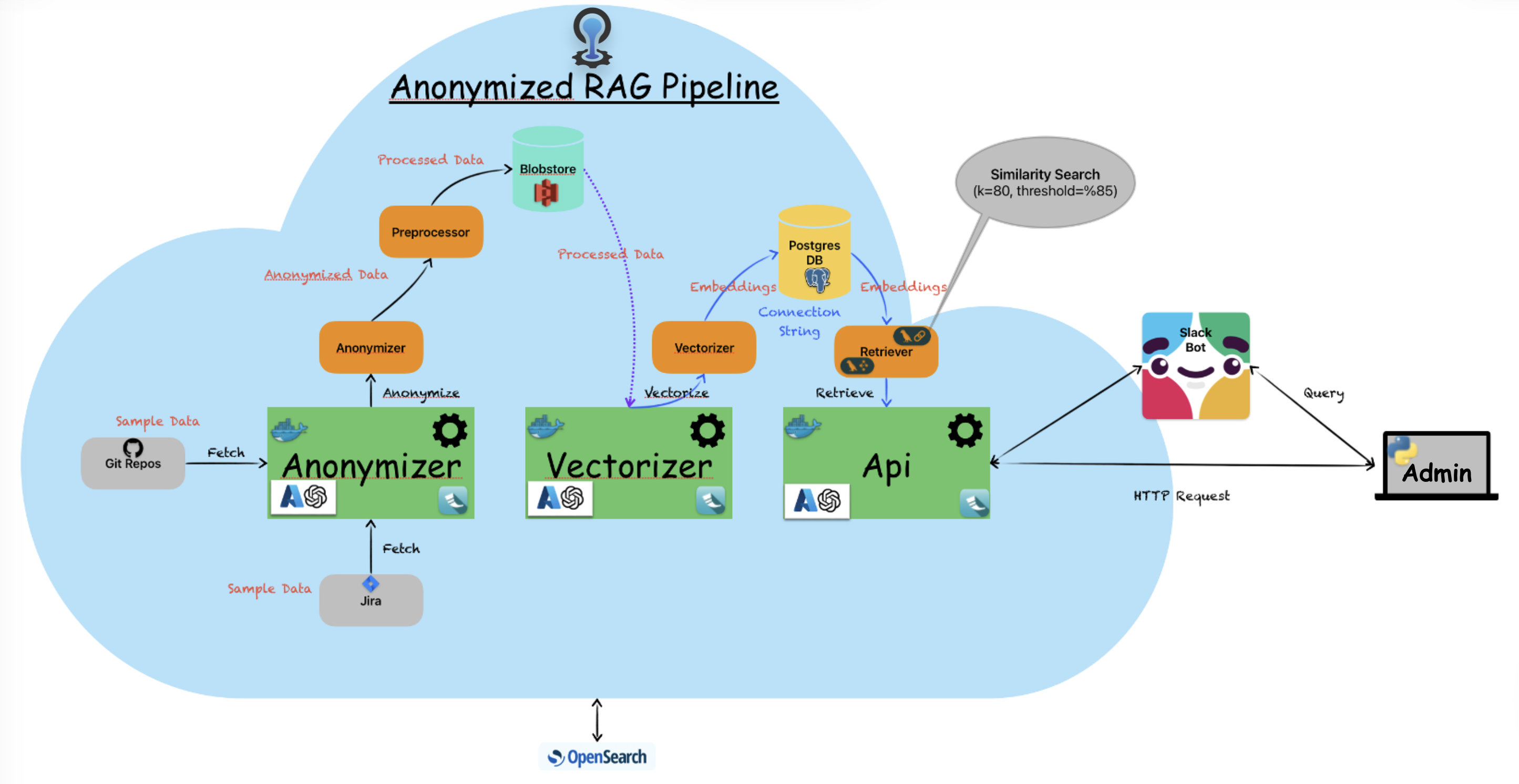

Architecture:

Developers

If you have question or problems of any kind, do not hesitate to contact to the developer directly:

• Kadir Tastepe ktastepe@cern.ch

Prerequisites

• Python 3.11
• Docker installation
• PostgreSQL database setup
• SAP BTP Global Account
• AWS S3 bucket for blob storage
• SAP AI Core service
• Gen AI Hub Deployments
• Required Python libraries (listed in requirements.txt)

Getting Started

Get the repository

git clone https://github.com/kadirtastepe/Multimodal-RAG-Pipeline.git

Before start working on this project, ensure that all the required Python libraries and environment are properly set up. Each time you are working on this project, you must set up the software environment first.

1. Go to directory cd Multimodal-RAG-Pipeline.
2. First time only authentication bash setup.
3. Setup environment source admin_setup.
4. Make desired configuration as listed below.
5. To deploy RAG Pipeline on Cloud Foundry, for brevity execute go.

Admin Interface:

Command	Meaning
make all IMAGES=<app>	Build selected image. [anonymizer/vectorizer/api]
make clean	Delete all docker images.
make fetch	Fetch the data to anonymizer.
make anonymize_md	Anonymize all fetched md files.
make anonymize_json	Anonymize fetched json data.
make preprocess_md	Preprocess all fetched md files.
make preprocess_json	Preprocess fetched json data.
make tar	Create a tar file including preprocessed data.
make vectorize	Vectorize the preprocessed data and sends to postgres.
make update	After fetching the json data process outdated entries.
make chain	Executes fetch and anonymize together.
make help	Show all configuration options.

Useful Features:

Command	Options	Meaning
set_mode	anonymizer/vectorizer/api	Change build option.
vectorize	md/json number_of_batches	Change file type and the number of batches for vectorization.
set_slack	on/off	Toogle slack communication on/off without redeploying.
s3 ls	<none>	Check the files in the blobstore.
s3 delete	file_name	Delete the files in the blobstore.
get_logs	<none>	Retrieve real-time logs from targeted apps.
